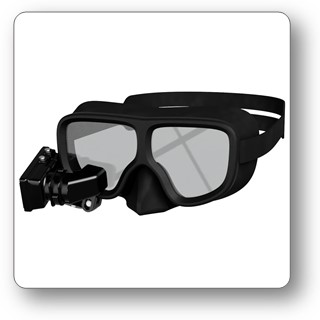

The SYMBIOS HUD is mounted directly on a diving mask.

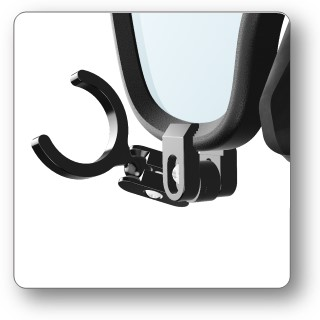

A support is clamped onto the frame of a diving mask. View onto the clamp from the front.

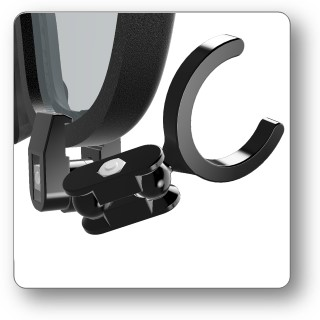

View onto the clamp from the backside of the diving mask.

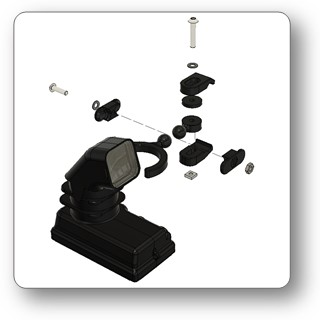

The support consists of 2 ball joints. They allow a simple adjustment of the SYMBIOS HUD in respect to the users eye
The SYMBIOS HUD is held by a clamp. Use the attachment point of the SYMBIOS HUD to secure the SYMBIOS HUD onto the diving mask.
Washers with different thicknesses or a combination of those are used to adjust the clamp to the size of the frame. 1mm, 2mm and 4mm washers are included in the package.
The support cannot be installed on all diving masks. If you are not sure, if the support fits on your mask, please contact your local dive shop.
Use a nylon fishing line to secure the SYMBIOS HUD to the diving mask.
