Select a gas from the gas table

<< Click to Display Table of Contents >>

Navigation:  Settings >

Select a gas from the gas table

All gases in the gas table, that are activated, can be selected.

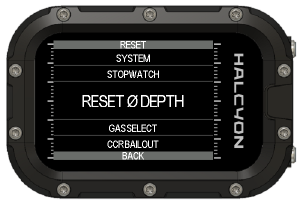

MENU_ROOT_01-HANDSET

To select a gas from one of the main screens:

Press and hold the top button to enter the menu.

Press and release top or lower button to navigate to the menu item SELECT GAS.

Press and hold the top button to open the SELECT GAS MENU.

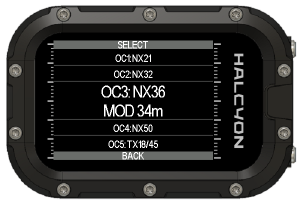

MENU_GAS_SELECT_01-HANDSET

Within in the SELECT GAS menu,

Press and release top or lower button to navigate between 5 open circuit gas and 3 diluent gas setting.

Press and hold the top button to select one gas setting.

Press and hold the lower button to go back in the menu.
