Navigation



In menu/HEADING it is possible to select and/or edit a target heading.

In menu/SYSTEM/COMP DECLINATION one can set a compass declination.

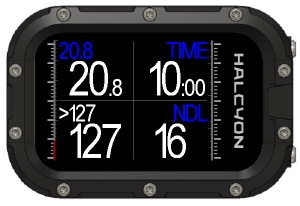

NAVI_MAIN_01-HANDSET



In this example, the selected target heading is 127° and the current heading is 115°.

A right-pointing arrow notifies the diver that the target heading is right from the current heading.

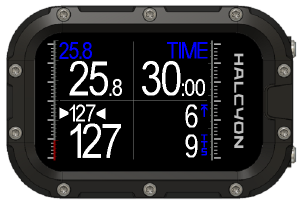

NAVI_MAIN_03-HANDSET



Two arrows indicate that the current heading is equal to the target heading.





NX_DETAILED_01-HANDSET



On this screen the compass is represented with a moving scale. The 127° - target heading is marked with a yellow line. The current heading is market with a small triangle.





notice_symbol

Before diving, make sure that the compass is correctly calibrated.

See chapter Settings/Compass calibration
