Potentially dangerous parameters are highlighted with blinking colors.
Additionally pop up messages notify the diver of dangerous situations.

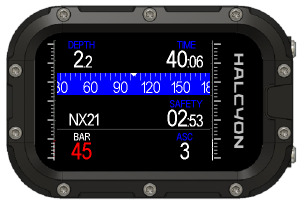

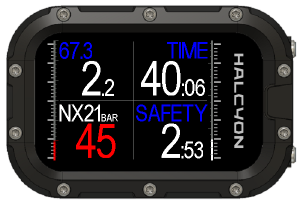

Tank pressure is too low: In this example, the tank pressure is 45 bar and blinking red/white. If the tank pressure is below 50 bar, the pressure value as well as the bar graph is blinking red/white.

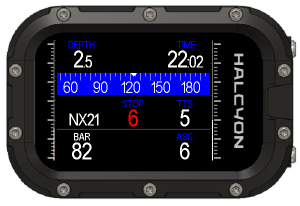

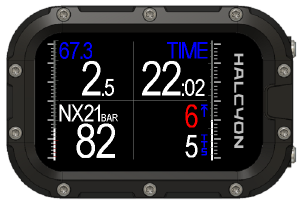

Ceiling violation: ceiling value is blinking white/red

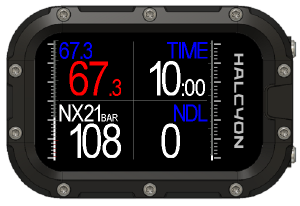

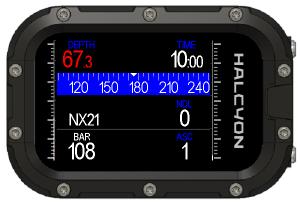

In OC mode, deeper than MOD: depth value is blinking white/red
Notifications in Sidemount Mode

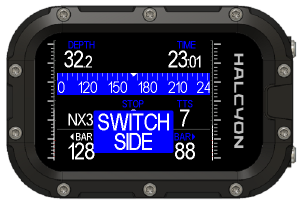

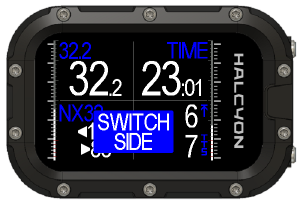

SWITCH SIDE will pop up, if the tank pressure between left and right tank differs more than 30 bar.
This function is only available, if the SYMBIOS HANDSET if the left and right tank are equipped with a tank pod and the SYMBIOS HANDSET is paired with them.
Alarms in CCR mode
In CCR mode, one pO2 level below 0.3 bar: pO2 value of a sensor is blinking red/blue
In CCR mode, one or more pO2 levels above 1.6 bar: pO2 value of a sensor is blinking white/red
In CCR mode, average pO2 value below 0.3 bar: PO2 LOW warning will pop up.

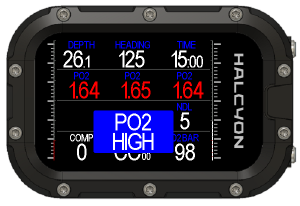

In CCR mode, average pO2 value above 1.6: PO2 HIGH warning will pop up.

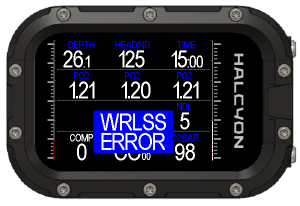

WIRELESS ERROR will pop up, when no wireless data were received for more than 30s.
BAT LOW will pop up, when the remaining battery capacity of the CCR is less than ... %

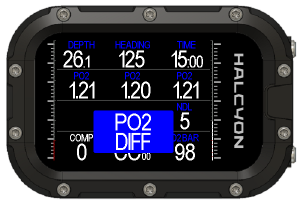

PO2 DIFF will pop up, when the controller and sentinel read pO2 values which differ more than 0.1 bar.

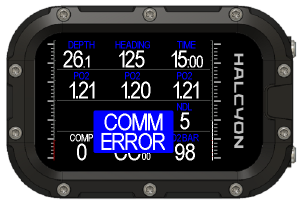

COM ERROR will pop up, when there was no communication between controller and sentinel for more than 10 s

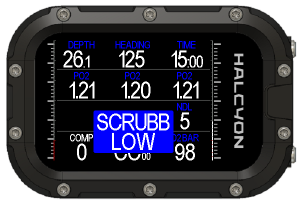

SCRUB LOW will pop up, when the scrubber timer uis used and the remaining scrubber time is less than 15 %.
Press and hold both buttons to confirm an alarm and deactivate a pop up message and vibration alarm.
